Heated Drinkers
Performance One Drinkers by Pride of the Farm
RELAX! We've Got Everything An Animal Could Ask For in a Drinker
Water Single Animals or a Couple Hundred
About
PRIDE OF THE FARM Heated Drinkers
Our Box Stall Drinker Wins by Several Lengths!
Poly Drinkers. Super Insulated. As Versatile as You Can Get.
Four Models
WPO1E - Heated Drinker
WPO6E - Heated Drinker
WPO12E - Heated Drinker
WPO17E - Heated Drinker

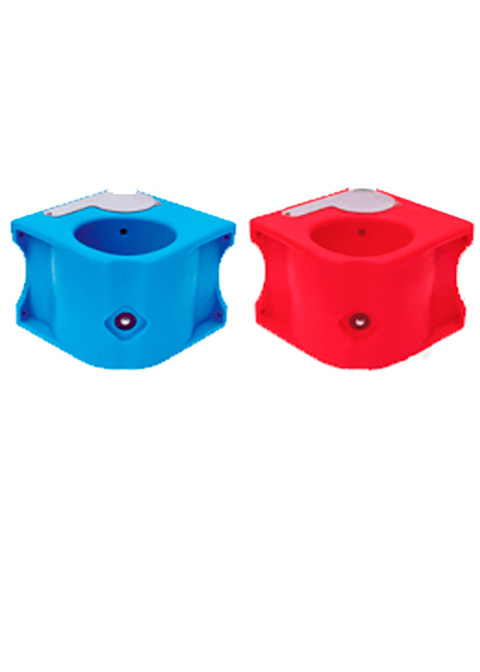

BOX STALL DRINKERS
WPO1
Drinker
Box Stall Drinker
For corner installations in box stalls, but can be installed outdoors as well.
Features
Stainless steel access plate. Half moon design on back corner for securing up to
a 2 inch (5.1 cm) PVC tube
for plumbing from
above or below.
Foam filled R-value of
7.5 inch.
Internal 3/4" (1.9 cm) AND external 2" (5.1 cm) drains; drinker is very easy
to clean. No disassembly for cleaning required.
Antisiphon fill valve delivers about 2 1/2 gallons (9.5 liters) per minute; simple water level adjustment,
easy to clean.
Optional heater, 250 watts, 110 volts. We tested this unit in a cold chamber at minus
30 degrees Fahrenheit (-34.4 degrees C). No freezing occured at this temperature - even after 7 days!
Available in Blue or Red.
View more

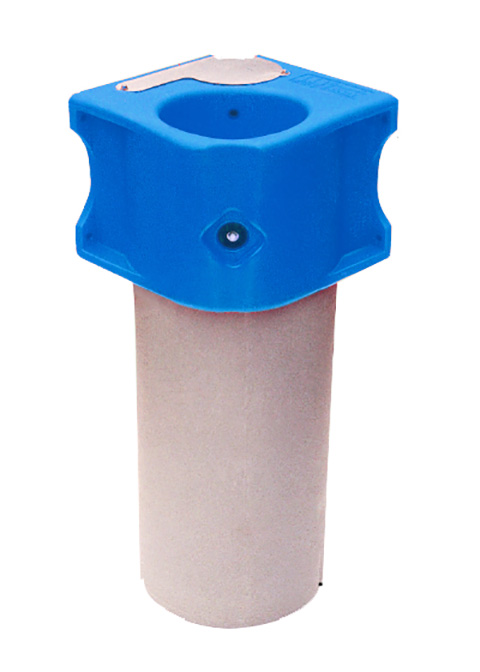

Ground Mounting
Tube
Optional Ground
Mounting Tube.
For hookup to underground service connections and for outdoor installations.
POLY HEATED DRINKERS

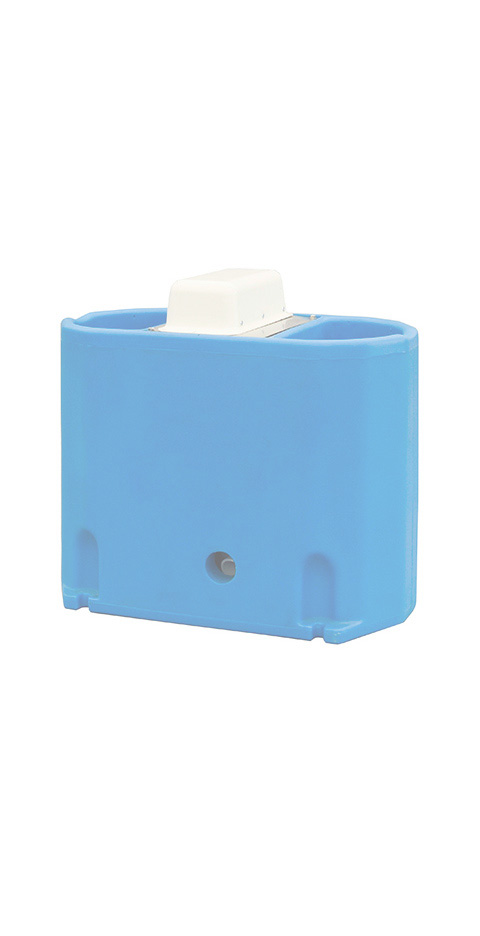

WPO6
Poly Drinker. Water horses, calves, wildlife with Performance One model WPO6, for stalls, corrals & paddocks.
FEATURES
Antisiphon fill valve delivers about 2 1/2 gallons (9.5 liters) per minute; simple water level adjustment, easy to clean.
Double wall, single piece poly construction - ALL SMOOTH.
Foam filled insulation - R value of 7.5 per inch which offers lots of freeze protection.
Optional heater, 250 watts, 110 volts. We tested this unit in a cold chamber at minus 30 degrees Fahrenheit (-34.4 degrees C). No freezing occurred at this temperature - even after 7 days! Heating cost is minimal - less than $10.00 per heating season.
...Continued
Four recessed anchor notches for secure installation.

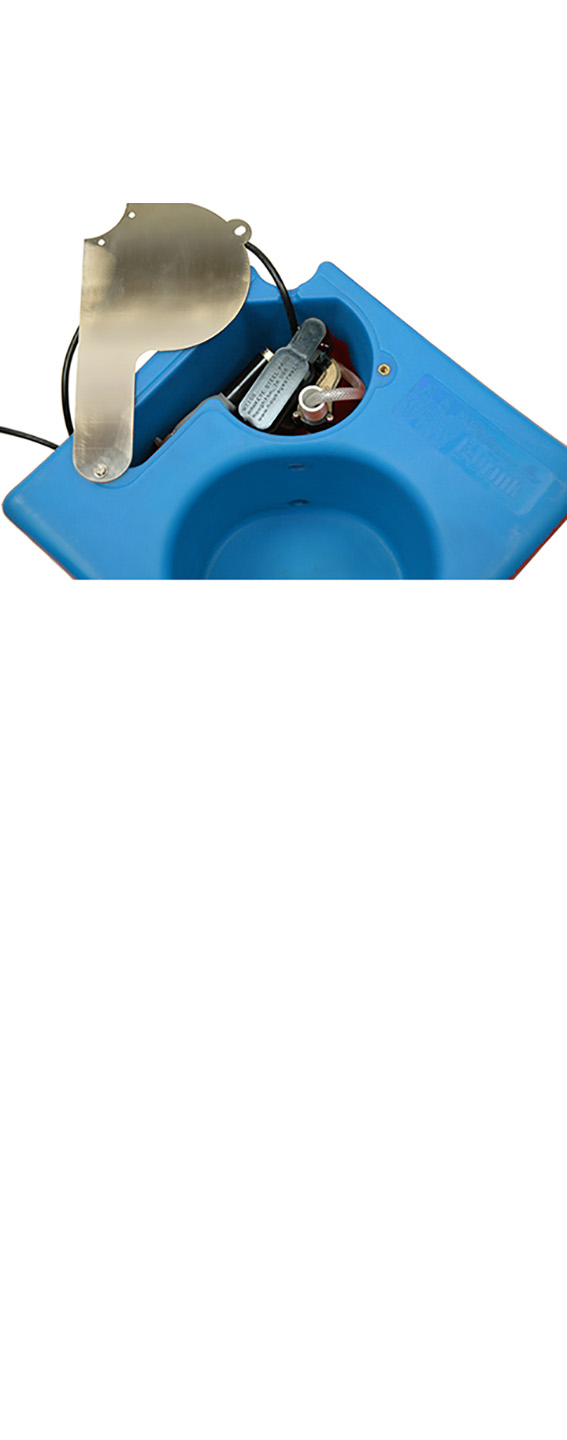

Easy access to valve and heater - just lift stainless steel
access plate.
Drinker is very easy to clean -
no disassembly for cleaning required.
Large 2" External AND Internal (5.1 cm) clean out drains.
Cavity for warm climate installations only. Some warm geographic areas do not use a riser tile and may only have a buried supply line protruding through a concrete pad.
The cavity can be used to make the connection from the supply line to our valve.

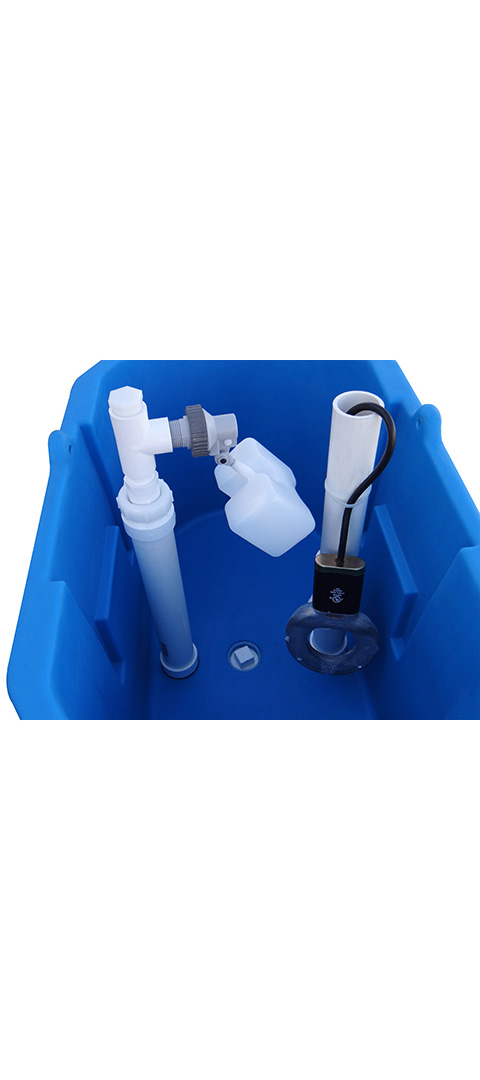

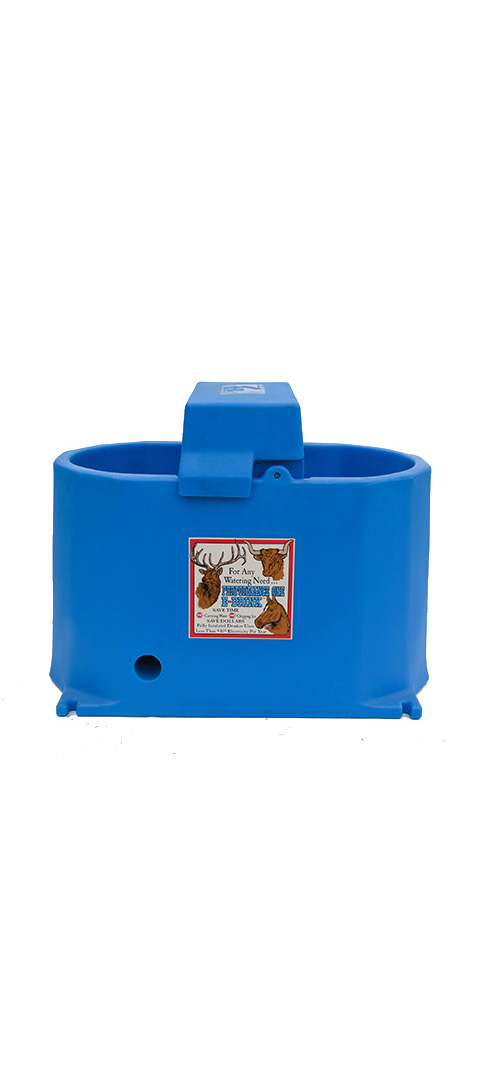

WPO17
Performance One E-Drink. Electrically Heated *Energy Efficient. You only need one unit to water up to 150 head of most any species.
A typical winter heating bill - $10.00 or less! Why?
3) Two reasons. Our drinker has 17 gallons of capacity. Incoming water carries heat energy. The more water, the more heat. Our R-value of 7.5 per inch holds the heat provided by incoming water. Secondly, our supply line is in the water. You don't need extra heat to keep the line above the ground open. You do need proper installation to prevent the supply line underneath the drinker from freezing.
Features
2 large drink openings 8" x 14" each. Drinker wells are 14" deep allowing most any animal to drink naturally.
100% poly construction. Molded with the most effective ultraviolet inhibitor.
Tough enough for years of outdoor use.
Notched flanges for easy anchoring.
Over 300 square inches of access for easy hook up.
Stainless steel spring loaded valve cover removes easily.
No loose parts to lose.
2-2 inch side drains and 1 threaded bottom port for optional inside drain.
Sealed bottom keeps out moisture and rodents.
Dependable nonsiphoning Durapride valve. Proven (15 years of use) 250 watt heater.

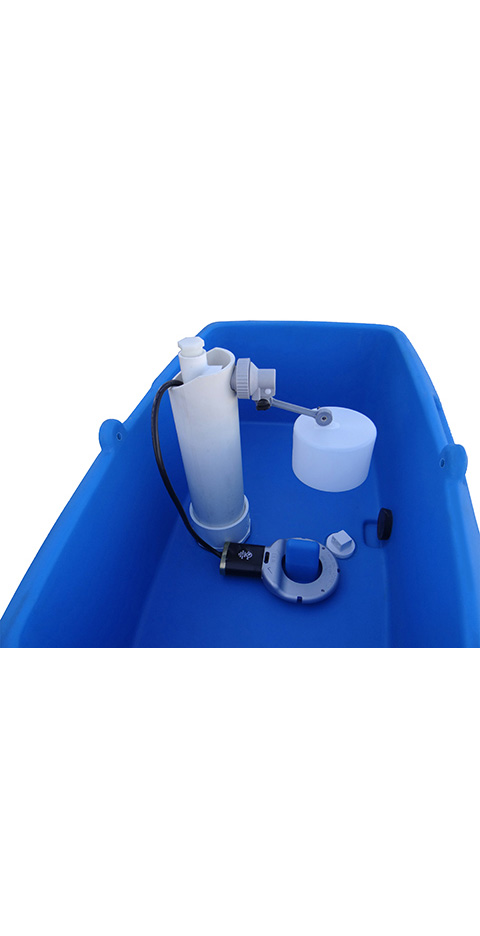

MPO12
New!
Similar to Model WPO17 but with an access door.
Features
Spring loaded pin allows access panel to pop off with the twist of a screwdriver. There are no loose parts.
Recessed, protected notches for secure anchoring.
Two inch built-in drain.
Proven (20 years of use)
250 watt heater.
Stainless steel spring loaded attachment pins make
cover removal and replacement easy.
Again, there are
no loose parts.
Overflow port.
Dependable non-siphoning Durapride valve.
Specifications
Download Catalog for Specifications
Instructions
Download Instructions
